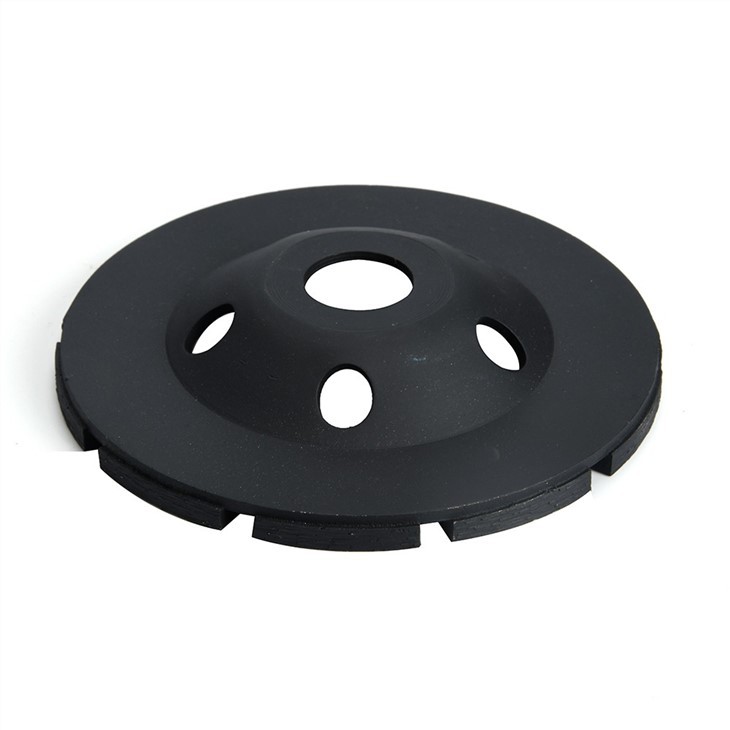

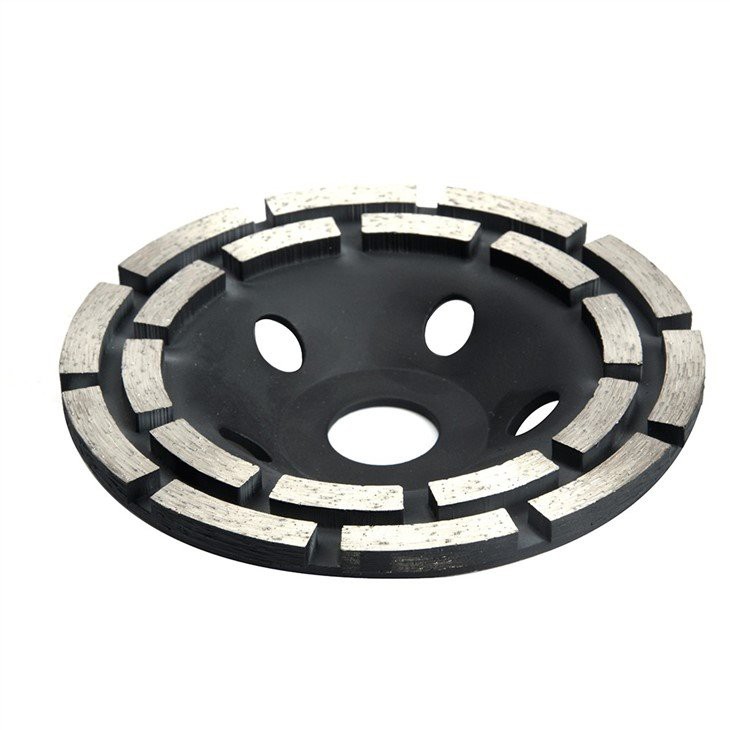

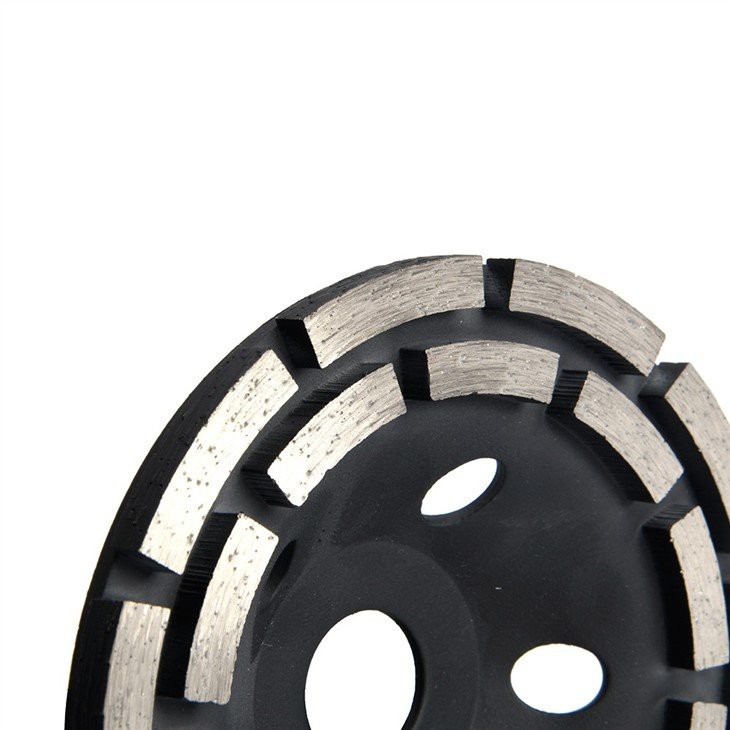

Double Row Cup Wheel Grinding Wheel for Granite Marble Concrete Floor

Short Description:

1. This product is the most efficient tool applied in fast-grinding,edge-trimming, repairing and maintenance of concrete, stone and other similar materials

2. It is applied on angle grinder and pneumatic power tools,

3. Regular diameter: (80mm),(100mm),(125mm),(150mm),(180mm)

4. Size: 125mm double row grinding cup wheel, Body thickness:2.5 mm

Send email to us

Product Detail

Product Tags

Product Information

Size	125mm double row grinding cup wheel
Cup wheel Diameter	125mm
Body thickness	2.5 mm
Core diameter	22.23mm
Segment Teeth thickness	5mm
Process type	Cold press sintered
Place of Origin	Jiangsu,China
Brand	HAOKE/OEM
Finishing	painting
Body material	A3 steel
Application	Grinding concrete granite marble.
Features	1.Diamond Cup Grinding Wheel:Provides for very fast cutting action on masonry, stone,and concrete. 2.Hole Design:Air holes designed to aid in maintaining and cooling the cutting pattern and reducing wear

Product Specifications

Diameter Inch/mm	Connection	Thickness(mm)	Segment Number	Grit	Model
3"/75	22.23/5/8"-11 M10/M12/M14/M16	5	14	30/40#、40/50#、60/80#、100/120#etc	DOUBLE ROW CUP WHEEL
4"/100	22.23/5/8"-11 M10/M12/M14/M16	5	14	30/40#、40/50#、60/80#、100/120#etc	DOUBLE ROW CUP WHEEL
5"/125	22.23/5/8"-11 M10/M12/M14/M16	5	14	30/40#、40/50#、60/80#、100/120#etc	DOUBLE ROW CUP WHEEL
6"/150	22.23/5/8"-11 M10/M12/M14/M16	5	14	30/40#、40/50#、60/80#、100/120#etc	DOUBLE ROW CUP WHEEL
7"/175	22.23/5/8"-11 M10/M12/M14/M16	5	14	30/40#、40/50#、60/80#、100/120#etc	DOUBLE ROW CUP WHEEL
