What Is an Auger Drill Bit? Your Ultimate Guide to Wood Drilling Efficiency
If you’ve ever had a twist drill bit clog or stall halfway through a wood project, an auger drill bit is the upgrade you need. Designed specifically for wood—whether it’s solid wood, plywood, or MDF—this tool offers faster drilling, cleaner holes, and far less effort.
What Makes Auger Drill Bits Unique?

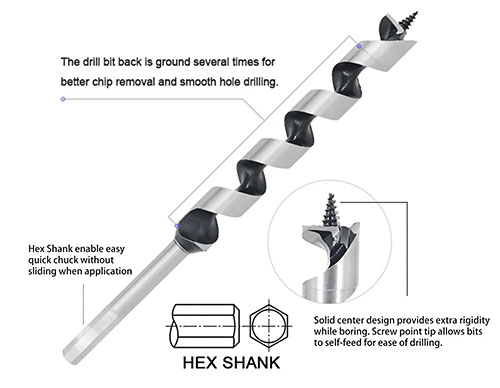

1. Wide Helical Flutes for Fast Chip Removal Auger bits feature oversized spiral flutes that efficiently eject wood chips, even during deep drilling. This prevents clogging and keeps the drilling process smooth without frequent stops.
2. Self-Feeding Screw Tip for Effortless Drilling The threaded tip bites into the wood and pulls the bit forward automatically. This reduces the force needed and ensures a steady, consistent drilling speed throughout the hole.
3. Solid-Center Design for Stability and Accuracy A reinforced solid core keeps the bit rigid and prevents wobbling. This stability is essential for clean, precise holes in furniture making, carpentry, and structural framing.
Available Sizes and Lengths

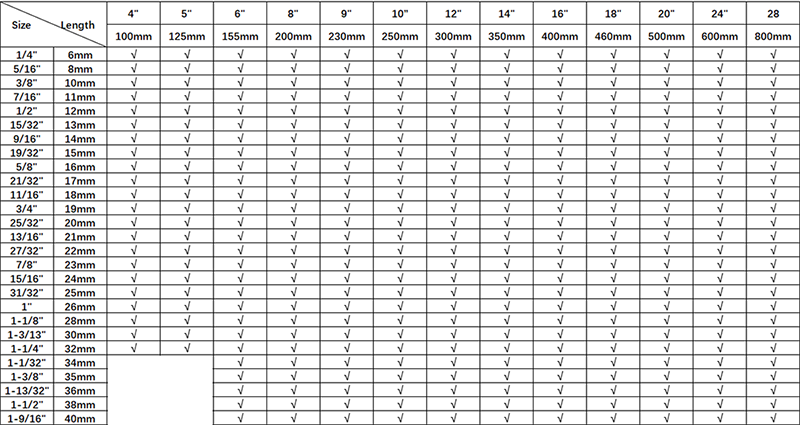

Auger bits come in diameters from 6mm to 40mm, covering everything from small joinery work to heavy-duty timber drilling. Common lengths range from 100mm to 800mm, with 230mm and 460mm being the most widely used.
▪230mm works well for general woodworking and DIY tasks.
▪460mm is ideal for drilling through thick beams, posts, and door frames.
Hex Shank vs. SDS-PLUS Shank
There are two main shank styles.
▪Hex shanks fit standard drills and provide strong anti-slip grip, making them perfect for everyday woodworking.
▪SDS-PLUS shanks work with SDS-plus rotary hammers and offer extra stability for heavy-duty drilling, especially when working through large timber. Choose the one that matches your power tool.

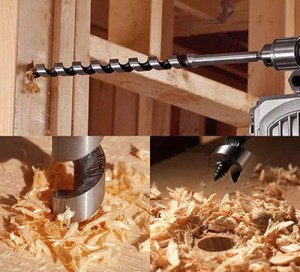

When to Use an Auger Drill Bit
Auger bits are ideal for drilling deep holes, high-volume drilling, framing, decking, and clean joinery work. They are excellent for wood but not suitable for metal, concrete, stone, or very thin materials where the aggressive screw tip may cause tearing.
Why Auger Bits Are Worth It
With faster drilling speed, better chip removal, greater stability, and cleaner hole quality, auger bits help both DIYers and professionals work more efficiently. Whether you're building furniture or constructing a wooden frame, a good auger drill bit saves time and effort.
Post time: Dec-05-2025
