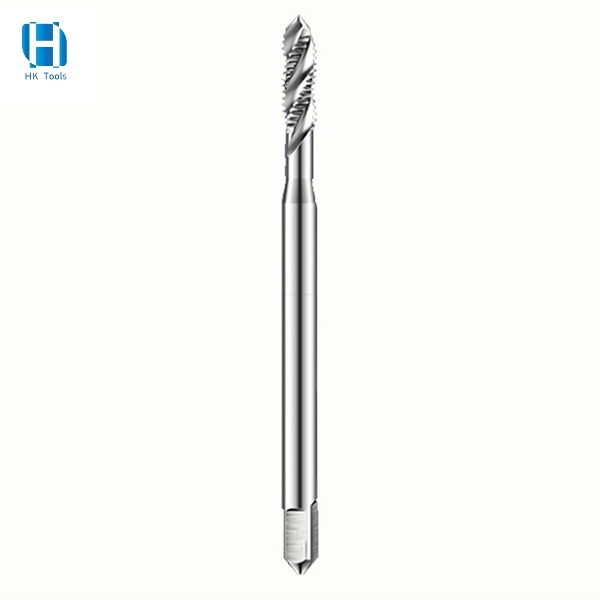

Extended Spiral Machine Taps Threaded Taps Customized M3M5M8M12
Product Information
| Product Name | Extended Spiral Machine Taps |
| Material | Alloy steel, HSS/HSS-CO |
| Type | Machine tap, hand tap, forming tap etc. |
| Flute | Spiral flute tap; Spiral pointed flute tap; Straight flute tap |
| Pitch | Coarse Pitch, Fine Pitch |
| Tolerance | H1, H2, H3, H4 |
| Coating | TiN/TiCN/uncoated |
| Standard | DIN, JIS, BS, ANSI and ISO |
| Size | M2~M24 |
| Hole type | Spiral flute taps: Longhole + Blind HoleStraight flute taps: Through-hole + Shallow blind hole
Tip tap: Through-hole |
| Workpiece material | Hardened Steel, stainless steel, carbon Steel, general steel, ironaluminum, copper and other metal steel |
| Used | Radial Drilling Machine, Bench Drill Machine, Pillar Drill Machine, Vertical Milling Machine |

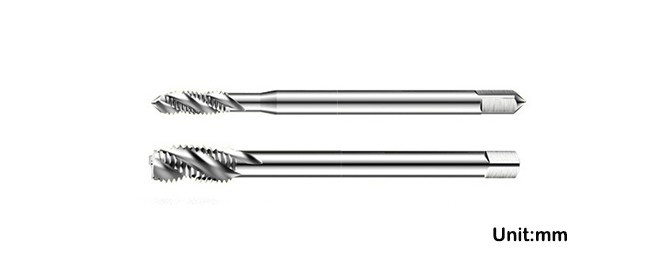

Product Size
|
Size |
Length | Flute Length | Pitch | Shank Diameter |
| M2*90 | 90 | 15 | 0.4 | 3.1 |
| M2.5*90 | 90 | 15 | 0.45 | 3.1 |
| M3*90 | 90 | 18 | 0.5 | 3.1 |
| M4*100 | 100 | 20 | 0.7 | 4.0 |
| M5*100 | 100 | 22 | 0.8 | 5.0 |
| M5*120 | 120 | 25 | 0.8 | 5.0 |
| M5*150 | 150 | 25 | 0.8 | 5 |
| M6*100 | 100 | 20 | 1.0 | 6.3 |
| M6*120 | 120 | 23 | 1.0 | 6.3 |
| M6*150 | 150 | 28 | 1.0 | 6.3 |
| M8*100 | 100 | 25 | 1.25 | 6.3 |
| M8*120 | 120 | 28 | 1.25 | 6.3 |
| M8*150 | 150 | 30 | 1.25 | 6.3 |
| M10*100 | 100 | 25 | 1.5 | 8.0 |
| M10*120 | 120 | 28 | 1.5 | 8.0 |
| M10*150 | 150 | 32 | 1.5 | 8.0 |
| M12*120 | 120 | 28 | 1.75 | 9.0 |
| M12*150 | 150 | 35 | 1.75 | 9.0 |
Custom-tailor would be available against customers’ requirements
Application
Applicable Materials

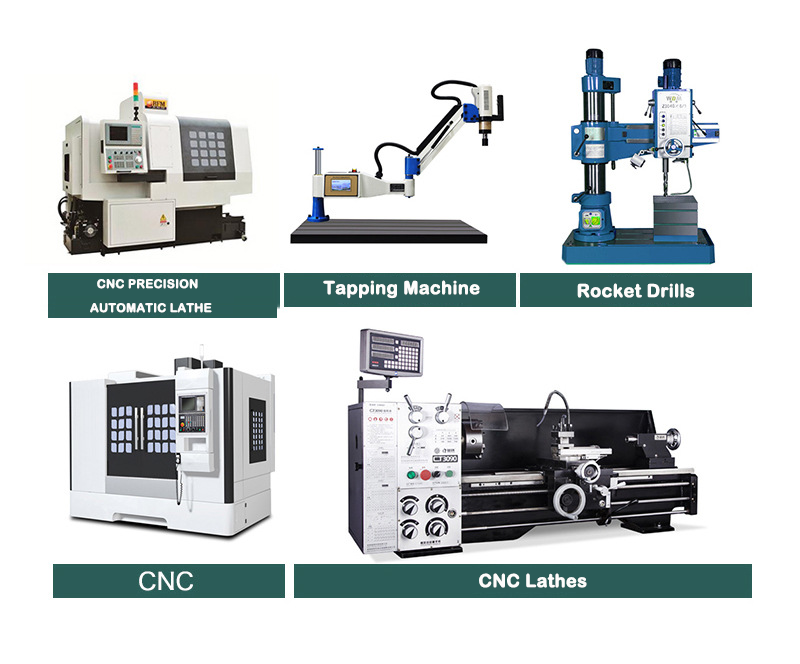

Application Equipment
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
-
